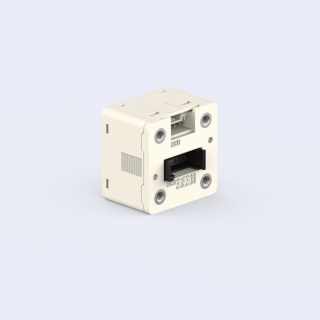

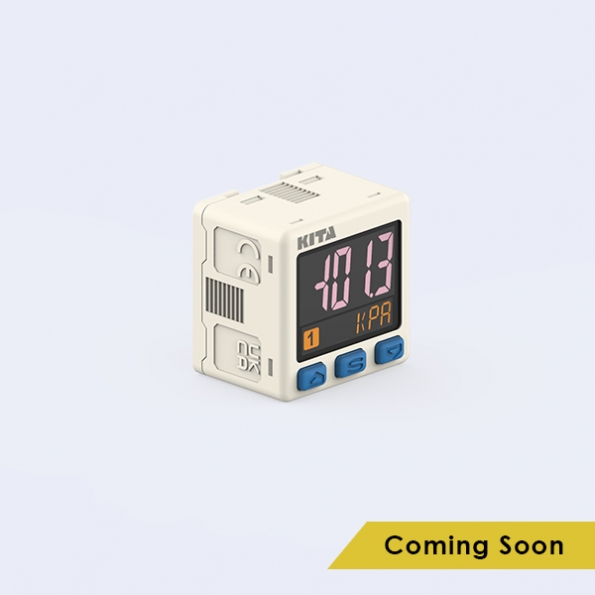

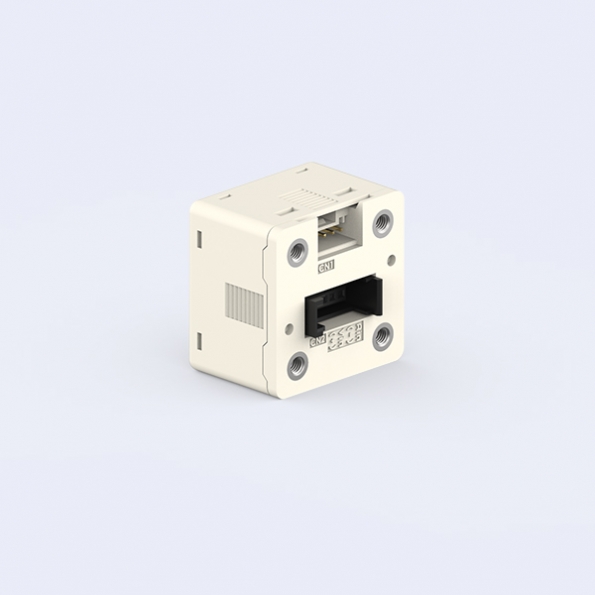

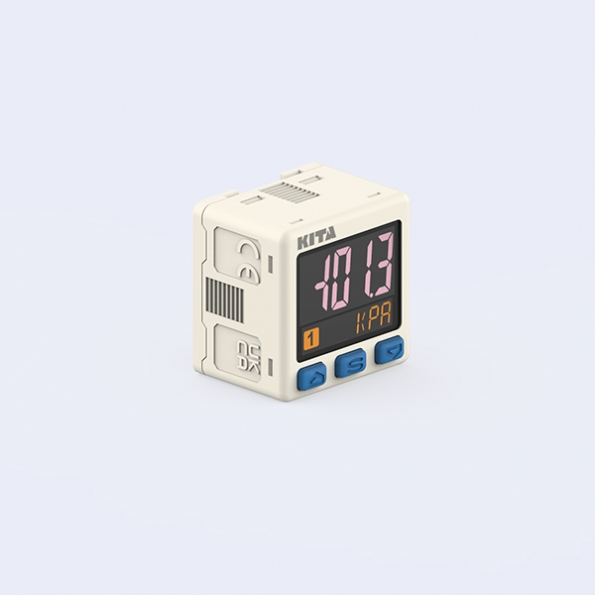

KP400E

KP400E Catalog KP400E Manual
Product details

Features：

  • Main/Sub-Display, 4½ digital 7 segment LCD display
  • Selectable unit：kPa、MPa、kgf/cm²、bar、psi、inHg、mmHg、mmAq、mL、L、mA、V
  • Multifunctional sub-display
  • Digital filter function
  • Switchable voltage output：1 ~ 5V , 0 ~ 10V
  • Sensor input：1 ~ 5V , 0 ~ 10V ,  4 ~ 20 mA
  • 17 ranges for transducer
  • Pirani gauge or pressure / flow transducer available


Specifications：

  Sensor Type S0 S01 S02 S03 S04 S05 S06 S07 S08 S09 S10 S11 S12 S13 S14 S15 S16 S17
Display Range Self-Setting 0
|
1000.0
kPa		 -100.0
|
100.0
kPa		 0
|
-101.3
kPa		 0
|
10.000
MPa		 0
|
25.00
MPa		 0
|
300.0
mL		 0
|
500.0
mL		 0
|
1000.0
mL		 0
|
5.000
L		 0
|
10.000
L		 -300
|
300
mL		 -500
|
500
mL		 -1000
|
1000
mL		 -5.00
|
5.00
L		 -10.00
|
10.00
L		 0
|
10
V		 4
|
20
mA

Pirani Gauge Brand and Model Self-Setting INFICON : VGC501 Leybold : TTR 91 N Edwards : APG100 / 200 Edwards : WRG200
Formula and Parameter Formula 10⁽⁽⁽ⱽ⁻ᵃ ⁾ᐟᵇ⁾⁾
Parameter a - mbar 5.000 ~ 8.083 6.143 6.143 6 8
Parameter a - pa 5.000 ~ 8.083 3.572 3.572 4 6.666666666
Parameter a - Torr 5.000 ~ 8.083 6.304 6.304 6.125 8.0833333
Parameter b 1.000 ~ 1.286 1.286 1.286 1 0.666667
