Product details

Features：

  • Real-time monitoring : flow, pressure, temperature, humidity
  • 65K Full Color TFT-LCD Display
  • 4-direction display for flexible viewing.
  • Response Time < 0.3 S
  • Switchable analog input/output and switch output.
  • RS-485 Modbus RTU


Specifications：

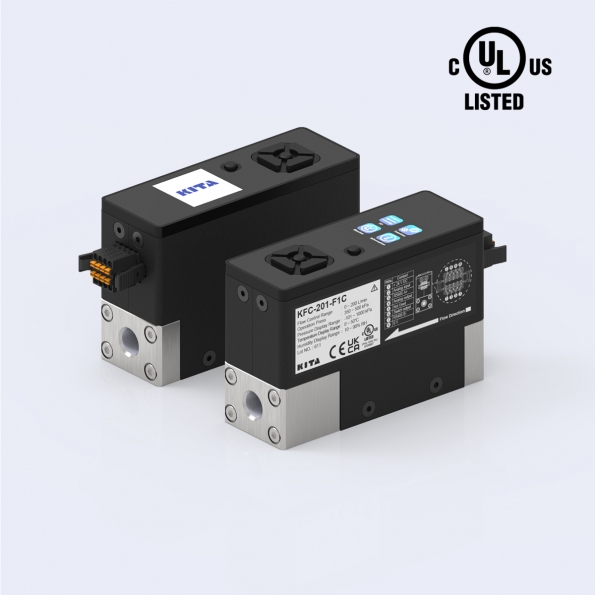

  Model KFC-201
Valve Type Proportional solenoid valve normally closed when power off (N.C.)
Fluid Non-corrosive / Non-flammable gas : Dry air, N₂, CO₂, Ar
Flow Rate  200 L/min
Flow Control Display Range 1 ~ 100% F.S.
Pressure Display Range -101 ~ 700 kPa
Temperature Display Range  0.0 ~50.0 ℃ / 32 ~ 122 ℉
