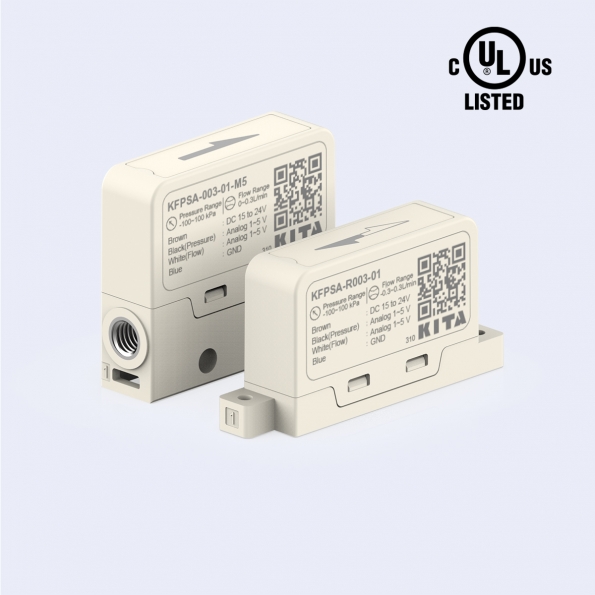

KFPS

KFPS CAD KFPS Catalog KFPS Manual
Product details

Features：

  • Flow and pressure dual sensor
  • Three-color indicator shows flow and pressure status at a glance
  • Analogue two signal 1 ~ 5 V ( flow & pressure )
  • Response time ≤ 5ms
  • Connector type with a lock


Specifications：

  Model 003 005 010 050 100 R003 R005 R010 R050 R100
Measured Flow Rate Range 0 ~ 0.3 L/min 0 ~ 0.5 L/min 0 ~ 1 L/min 0 ~ 5 L/min 0 ~ 10 L/min -0.3 ~ 0.3 L/min -0.5 ~ 0.5 L/min -1 ~ 1 L/min -5 ~ 5 L/min -10 ~ 10 L/min
Flow Direction Unidirectional Unidirectional Unidirectional Unidirectional Unidirectional Bidirectional Bidirectional Bidirectional Bidirectional Bidirectional
Rated Pressure Range -100 ~ 100 kPa -100 ~ 100 kPa -100 ~ 100 kPa -100 ~ 100 kPa -100 ~ 100 kPa -100 ~ 100 kPa -100 ~ 100 kPa -100 ~ 100 kPa -100 ~ 100 kPa -100 ~ 100 kPa
Fluid Dry air, N2 , Non-corrosive / Non-flammable gas Dry air, N2 , Non-corrosive / Non-flammable gas Dry air, N2 , Non-corrosive / Non-flammable gas Dry air, N2 , Non-corrosive / Non-flammable gas Dry air, N2 , Non-corrosive / Non-flammable gas Dry air, N2 , Non-corrosive / Non-flammable gas Dry air, N2 , Non-corrosive / Non-flammable gas Dry air, N2 , Non-corrosive / Non-flammable gas Dry air, N2 , Non-corrosive / Non-flammable gas Dry air, N2 , Non-corrosive / Non-flammable gas
