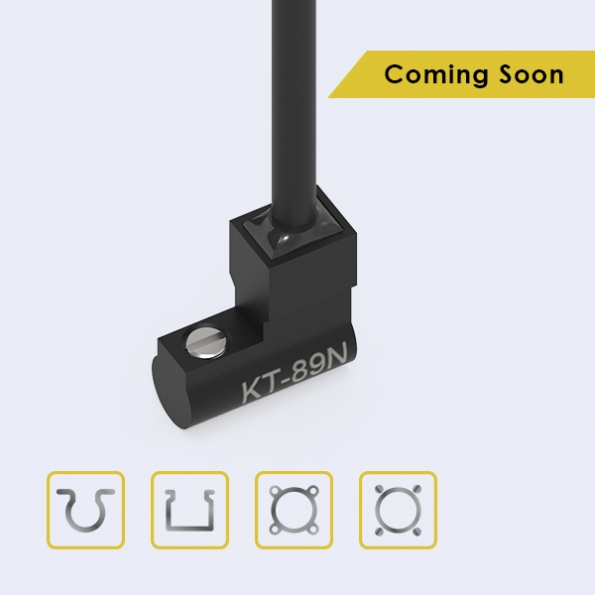

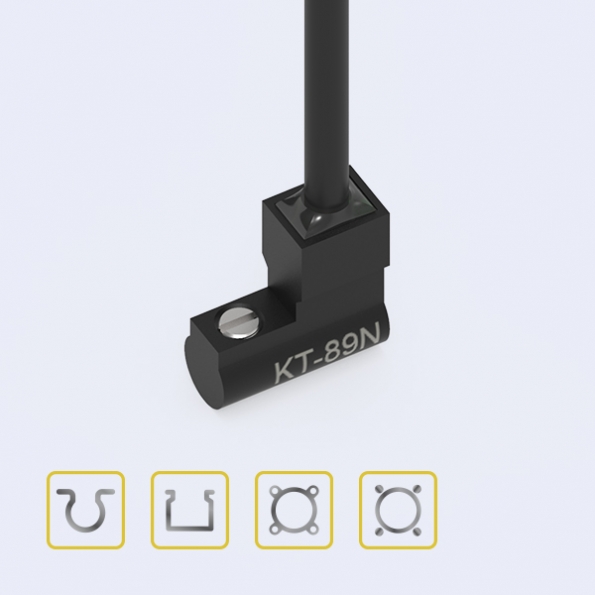

KT-89

KT-89 CAD KT-89 Catalog
Product details

Model KT-89D KT-89N KT-89P
Switching Logic Solid State Output, Normally Open Solid State Output, Normally Open Solid State Output, Normally Open
Sensor Type – NPN Current Sinking PNP Current Sourcing
Operating Voltage 5 ~ 30V DC 5 ~ 30V DC 5 ~ 30V DC
Switching Current ≤ 80 mA ≤ 150 mA ≤ 150 mA
Contact Rating ≤ 2.4 W ≤ 4.5 W ≤ 4.5 W
Current Consumption – ≤ 2 mA ≤ 2 mA
Voltage Drop ≤ 4.0 V @ 80 mA ≤ 1.5 V @ 150 mA ≤ 1.5 V @ 150 mA
Indicator Red LED Red LED Red LED
Cable Ø2.6 PVC - 27 AWG ( 0.11 mm² ) - 2 cores Ø2.6 PVC - 27 AWG ( 0.11 mm² ) - 3 cores Ø2.6 PVC - 27 AWG ( 0.11 mm² ) - 3 cores
Operating Frequency ≤ 1000 Hz ≤ 1000 Hz ≤ 1000 Hz
Magnet Requirement 40 ~ 1000 Gauss 40 ~ 1000 Gauss 40 ~ 1000 Gauss


– Accessory –

PF7
Designed for mounting on ISO profile cylinder

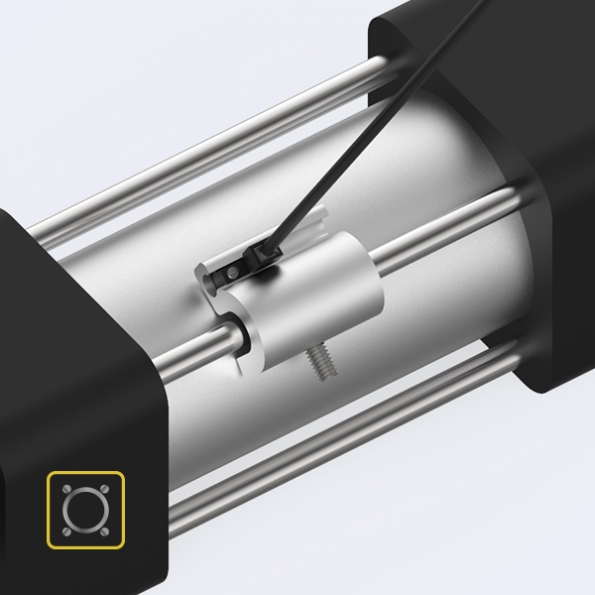

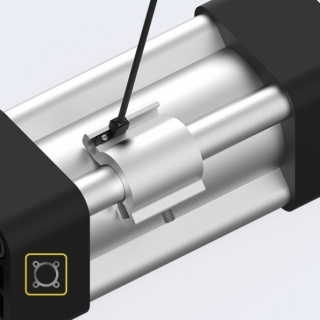

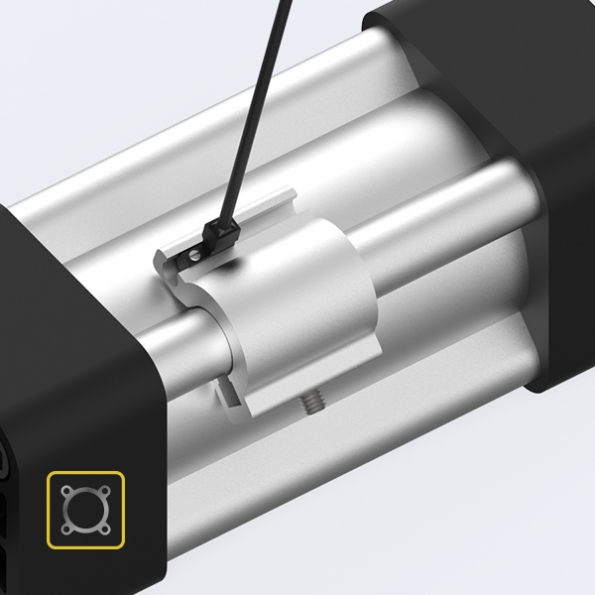

DT7
Designed for mounting on Tie-Rod cylinder

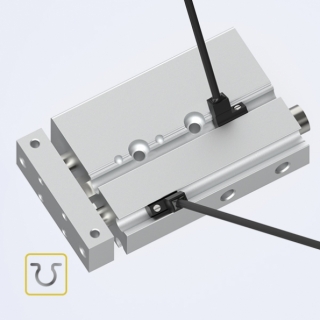

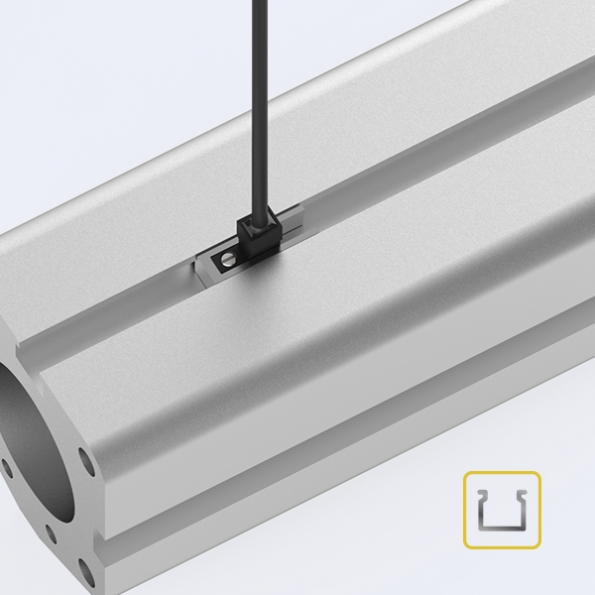

PB
Designed for mounting on T-Solt cylinder
